*PRE-ORDER NOW (EXPECTED DELIVERY DECEMBER / EARLY-JANUARY)

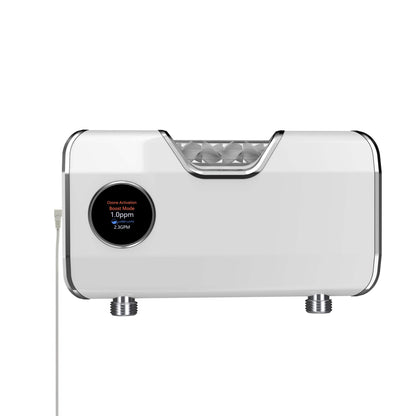

SMART LAUNDRY SYSTEM +PLUS

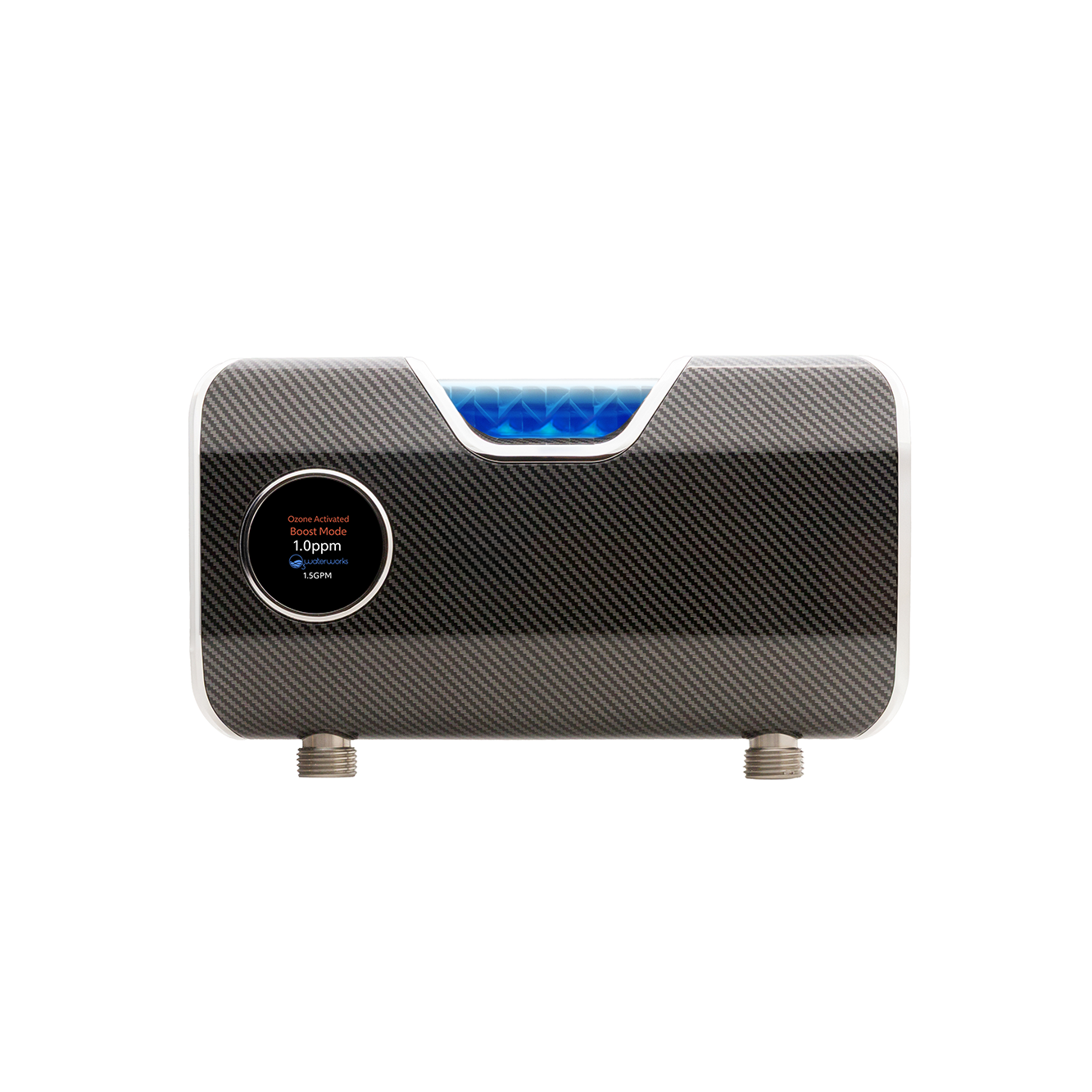

MEET THE NEW & IMPROVED SMART LAUNDRY SYSTEM PLUS!

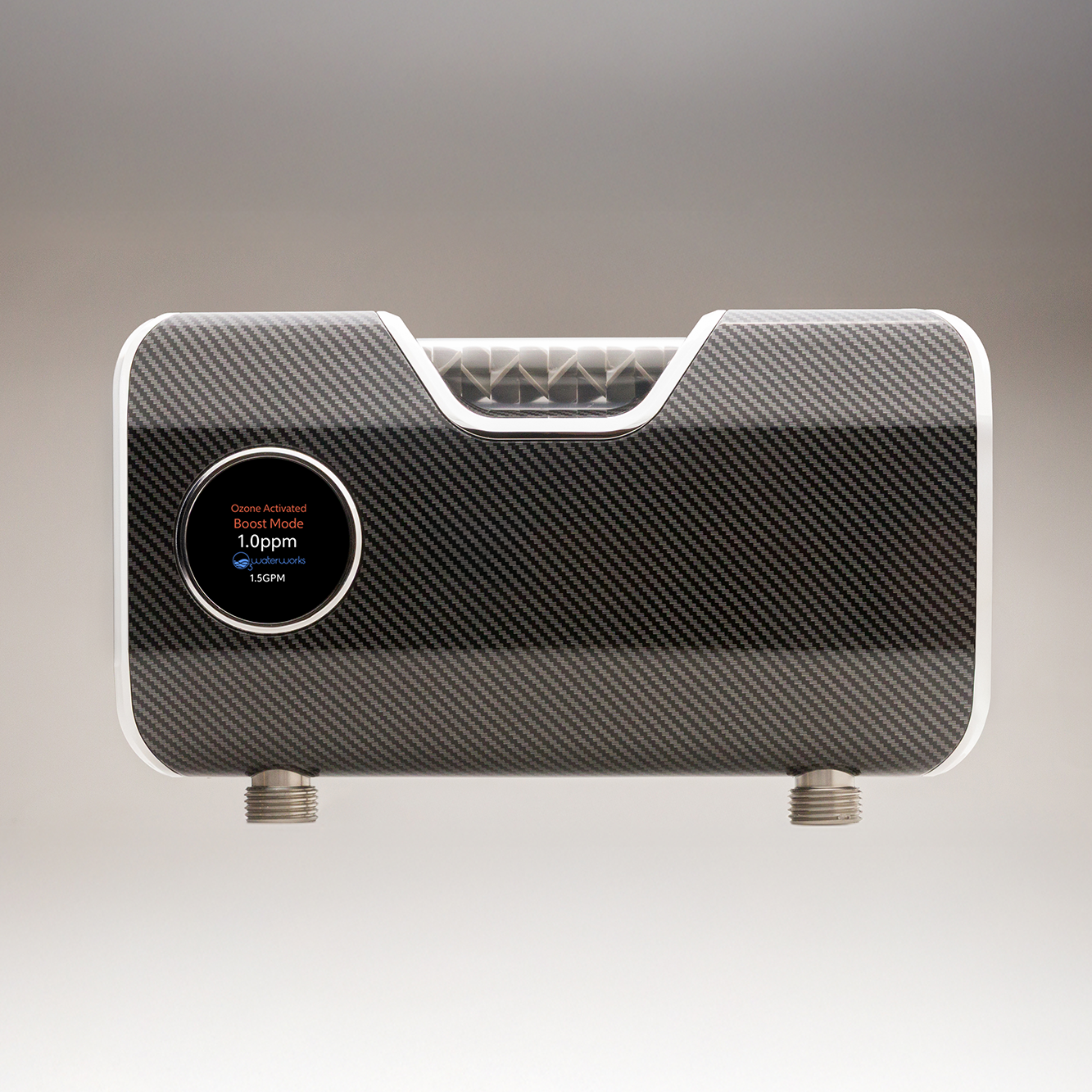

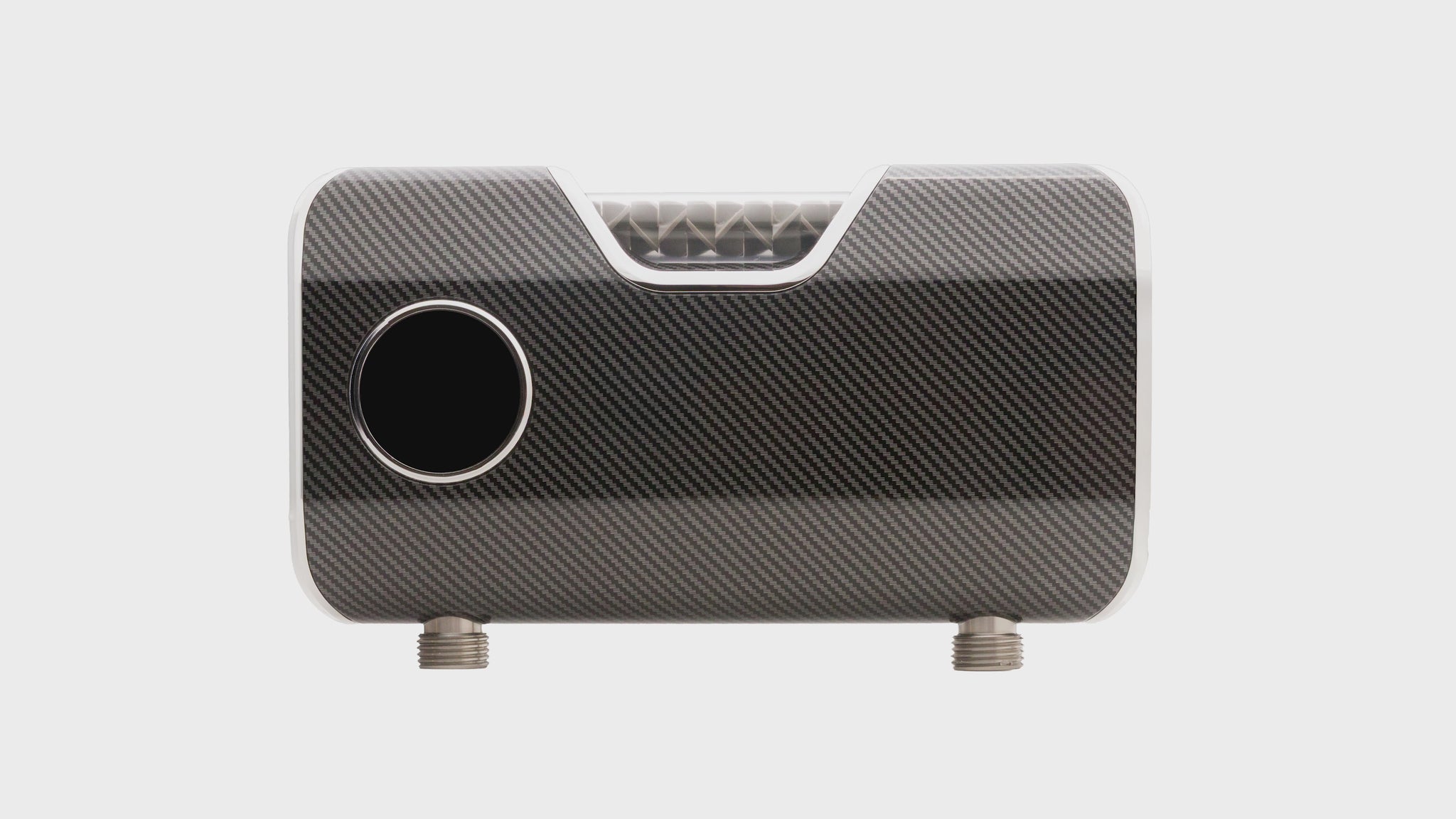

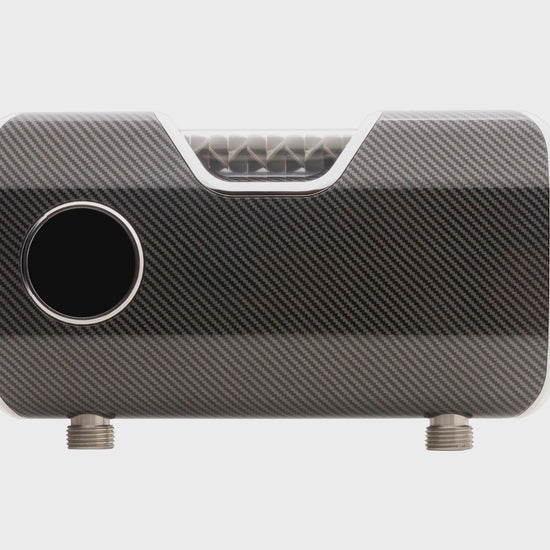

• NEW CARBON STAINLESS STEEL FINISH LOOK
• UPGRADED TECHNICAL SPECS FOR IMPROVED PERFORMANCE
• INCLUDED LINE SPLITTER FOR MORE WAYS TO USE

VIEW USER MANUAL

SMART LAUNDRY SYSTEM PLUS SPECIFICATIONS:

• Model #: LM510
• PATENT #: 11,505,887

• Weight: 8lbs, 1oz
• Dimensions: 26" Wide x 9" Tall x 2.85" Deep
• Materials: Carbon Stainless Steel Cover and Water fittings, Gloss Black ABS top & Bottom Caps, Stainless Steel water fittings. *Improved internal plumbing management

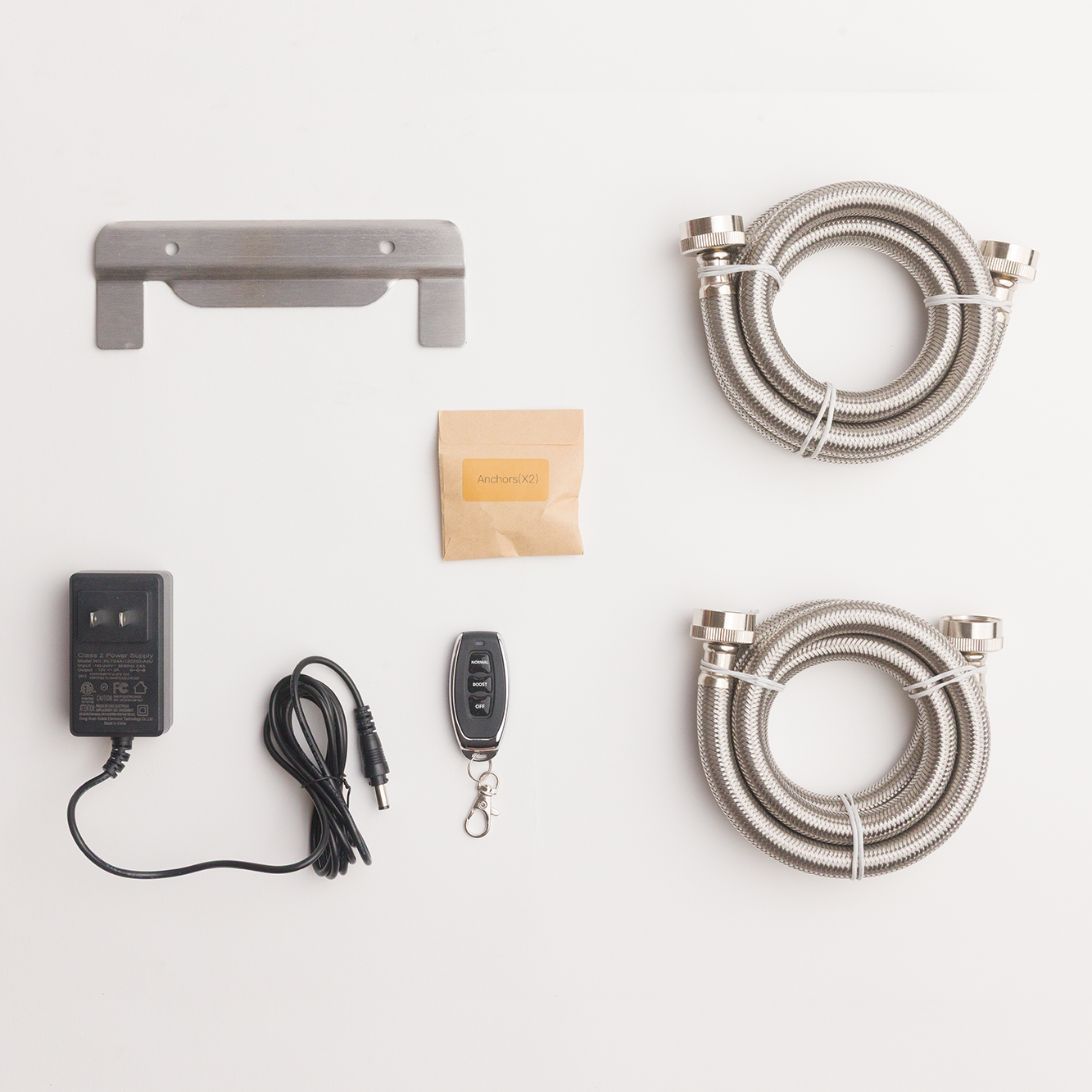

• Power Pack (included): 100V AC to 240V AC, 50/60Hz 1.5A, (standard 2 prong 120 volt plug). Power pack cord length is 6ft
• Water Supply Hoses (2x included): 4ft Braided Stainless Steel 3/4" BSP (Standard laundry fittings)

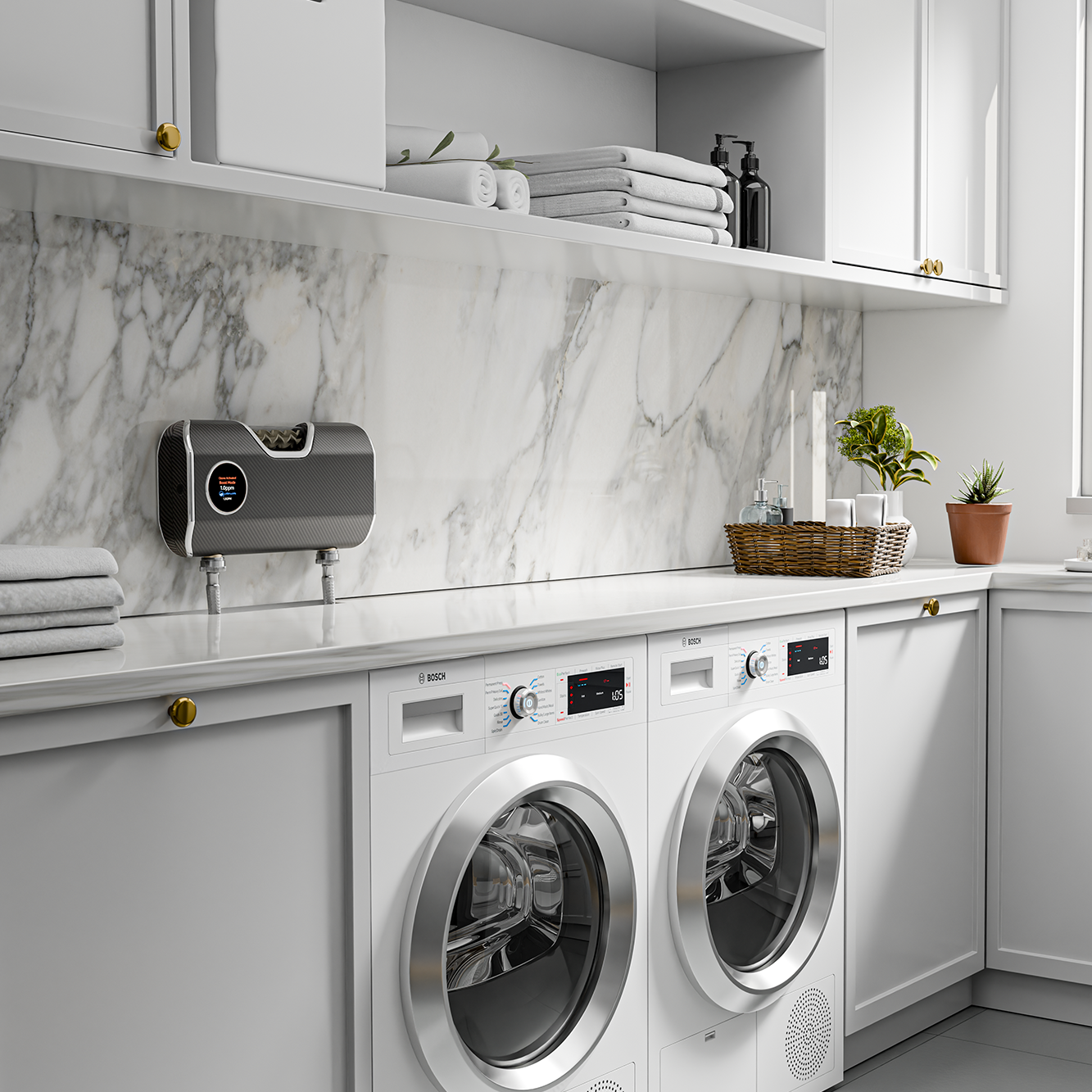

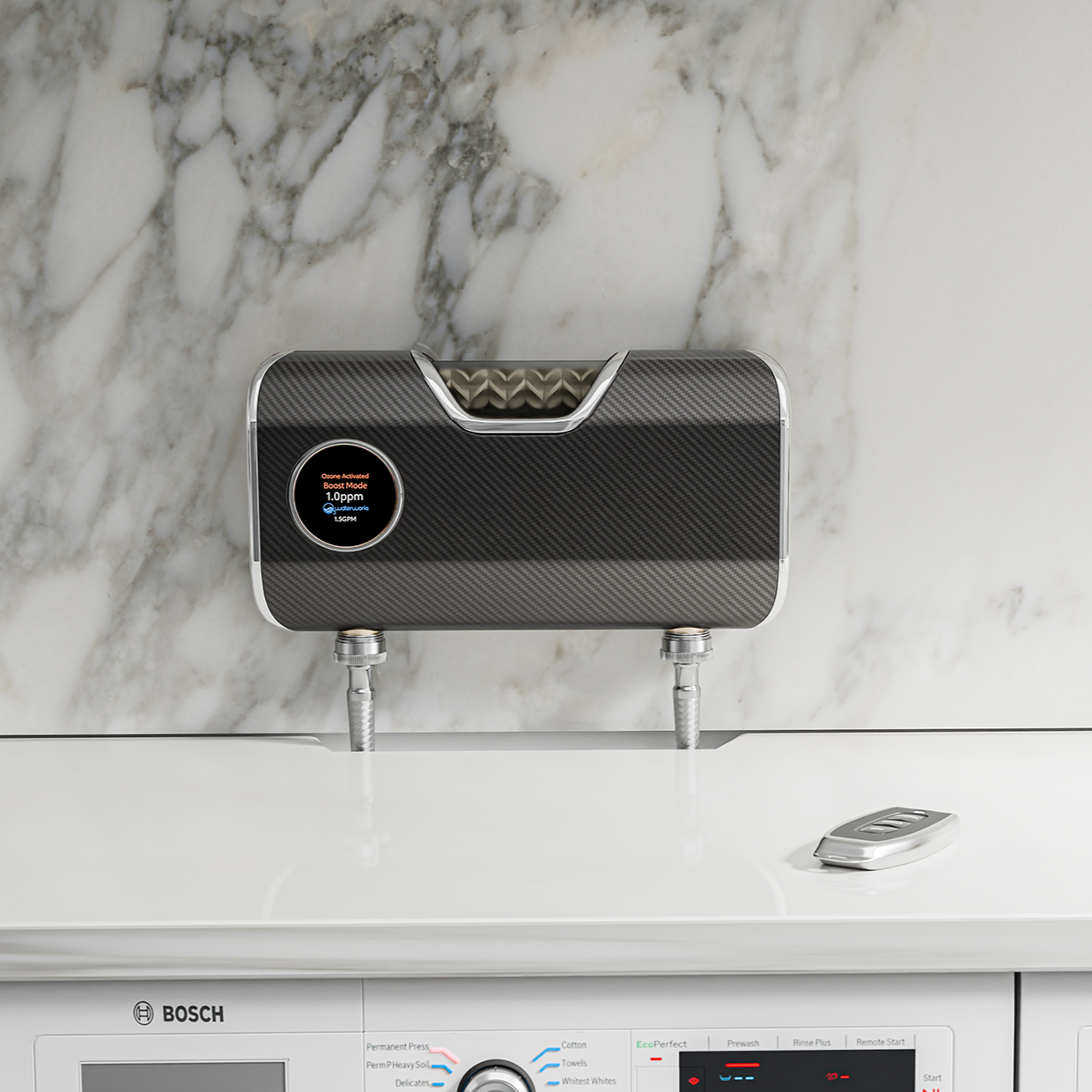

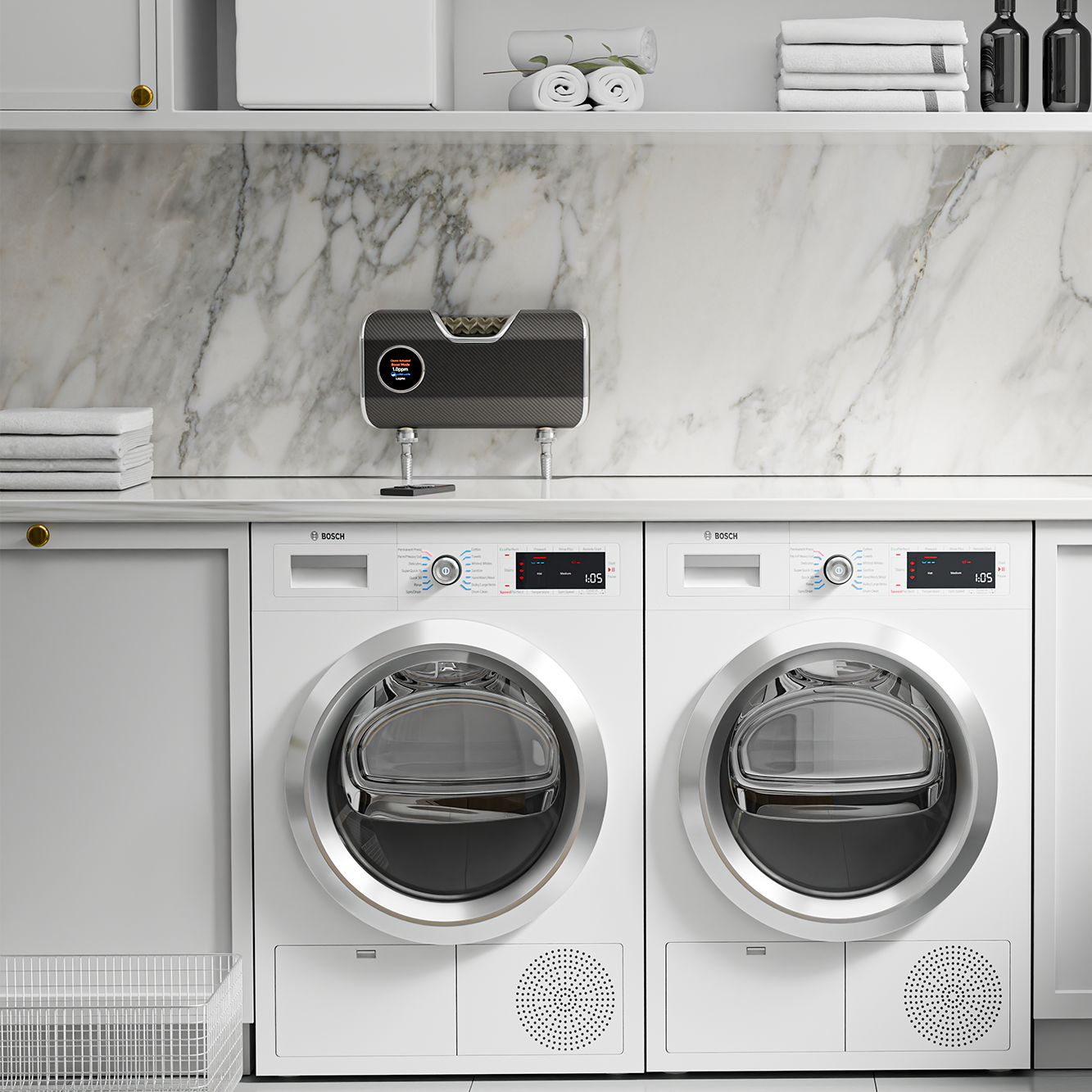

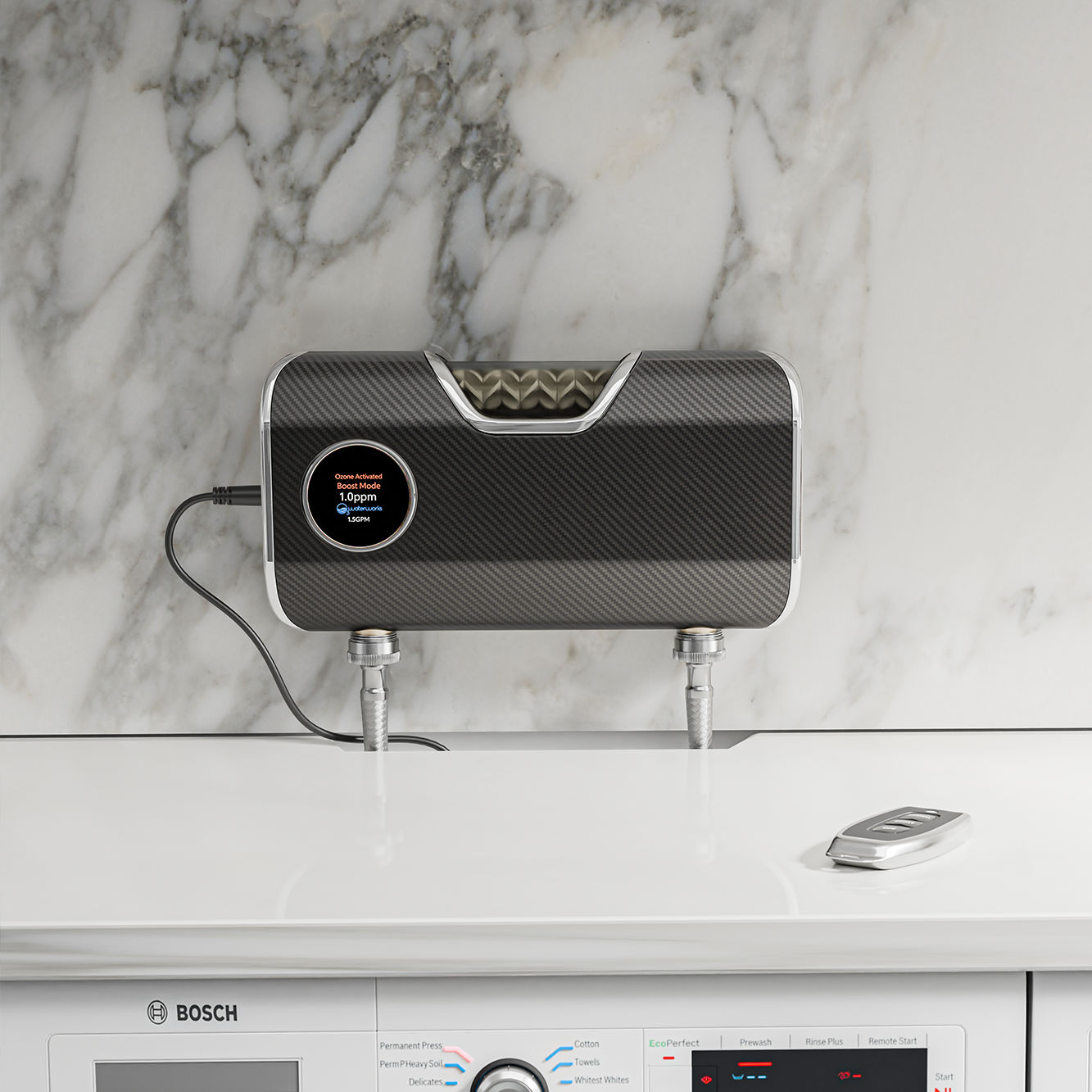

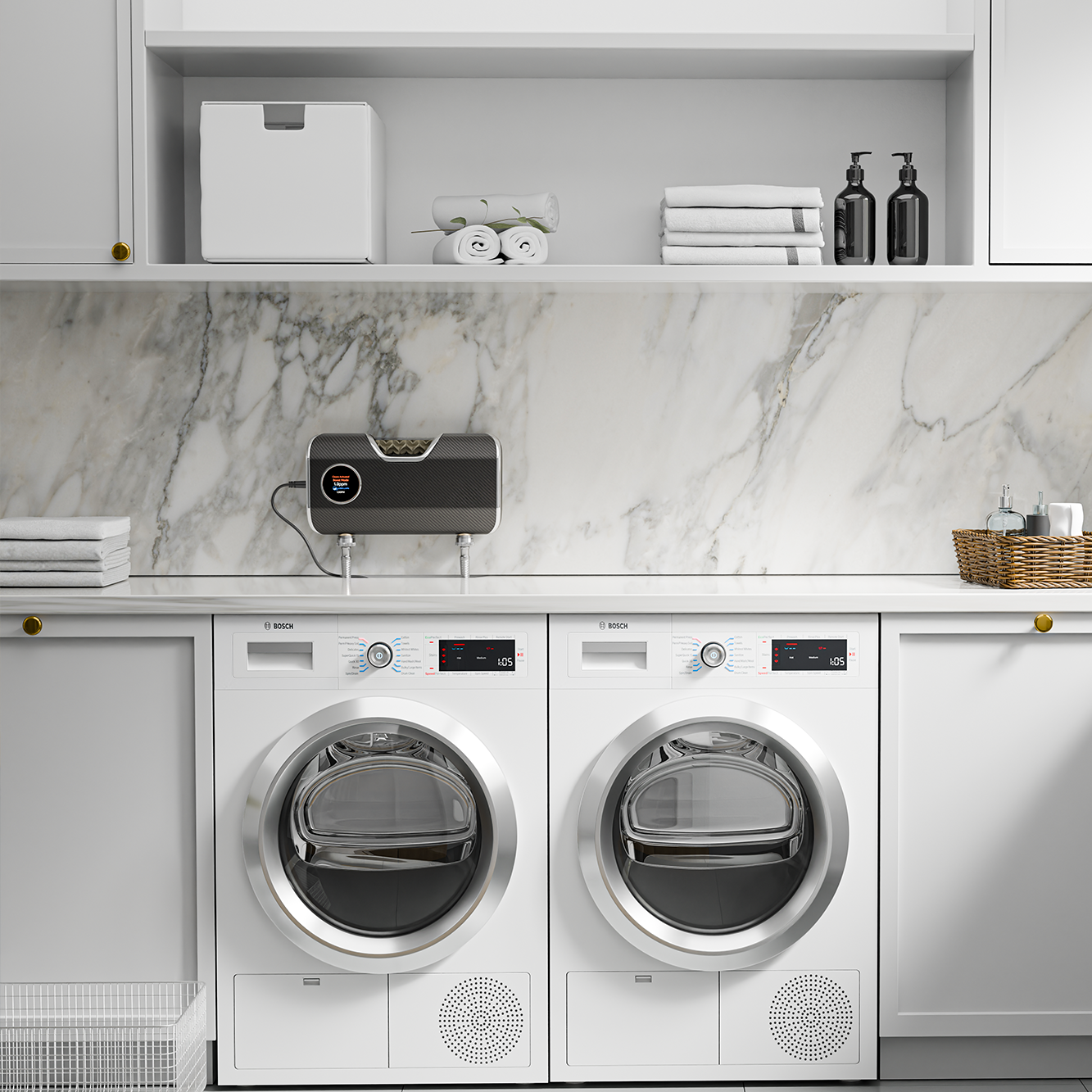

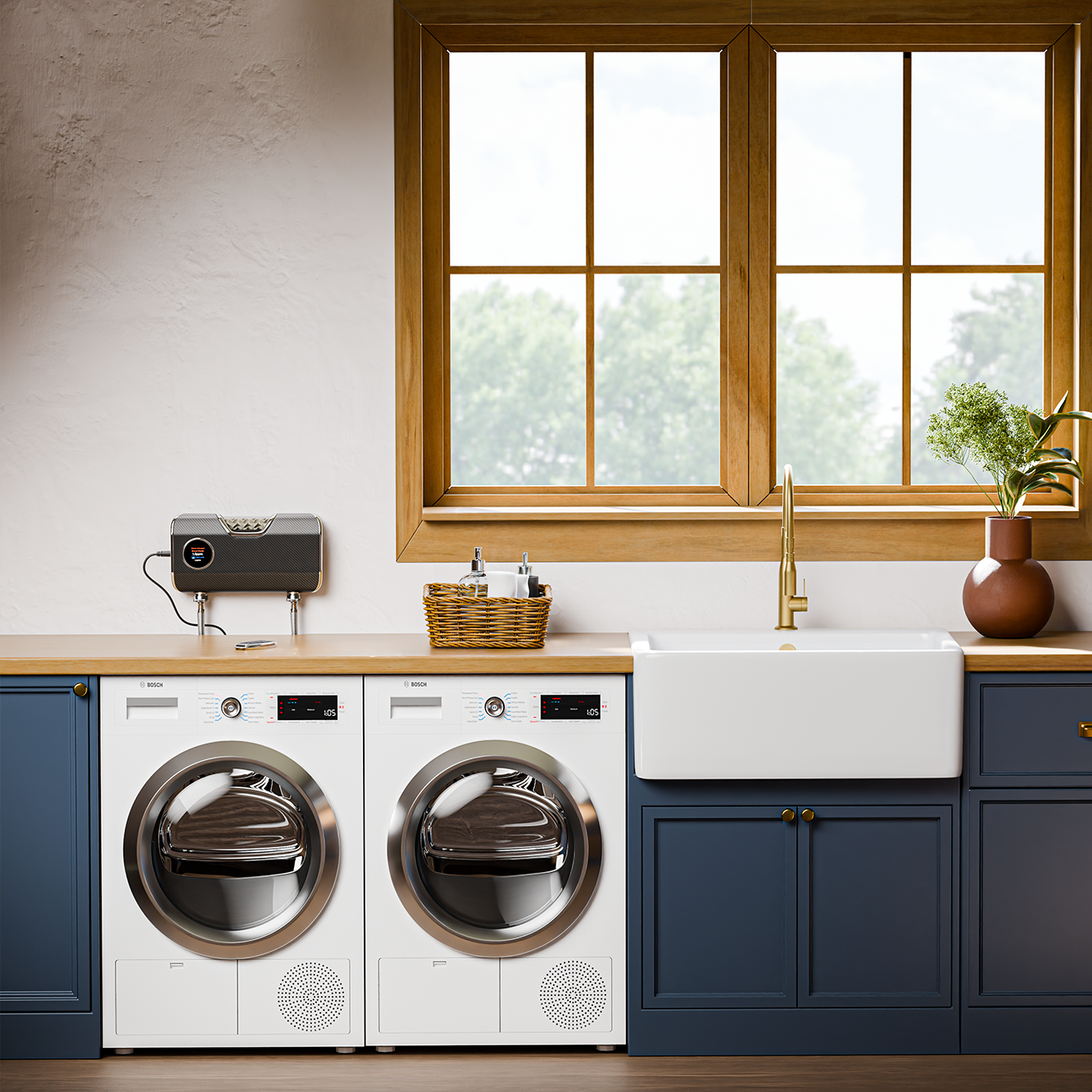

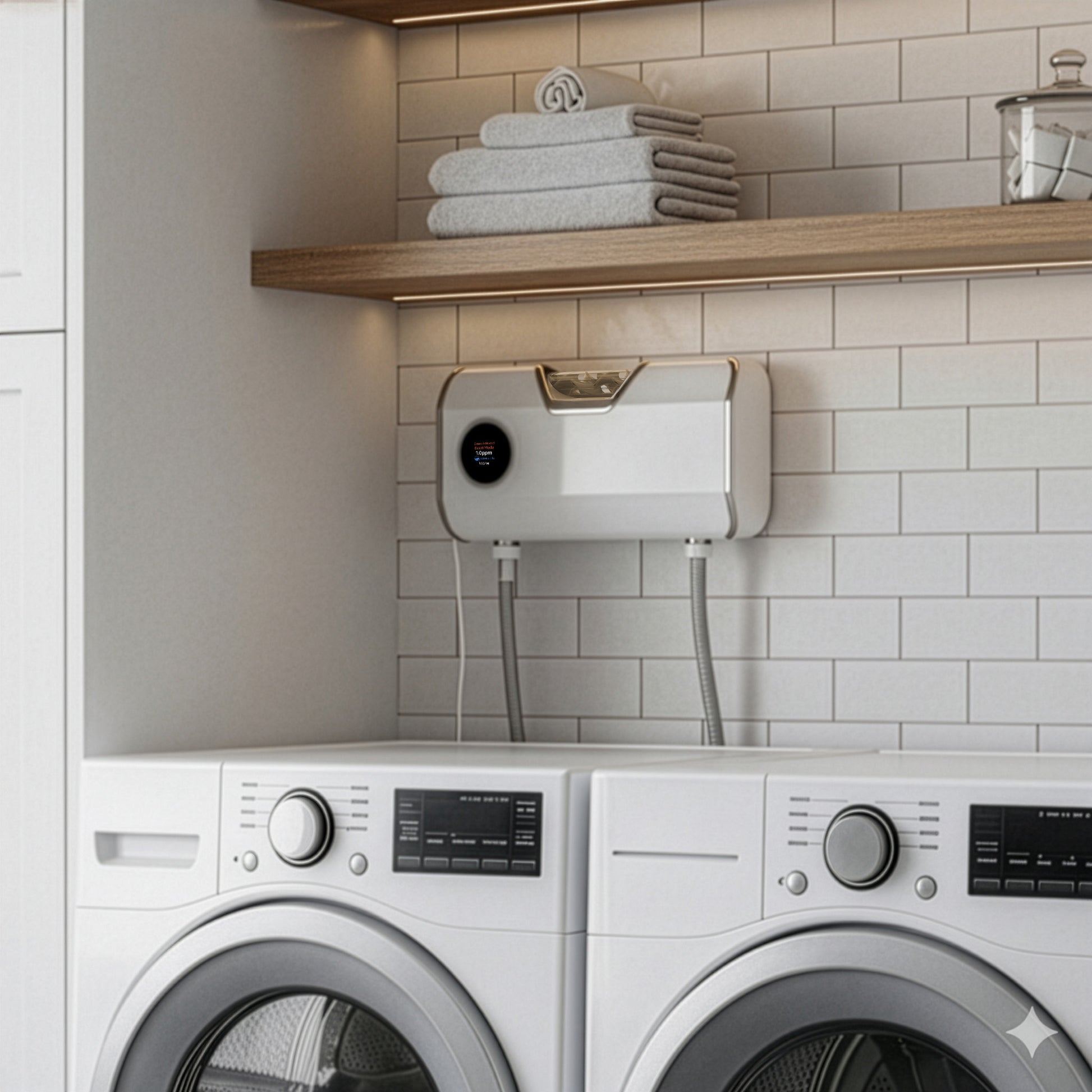

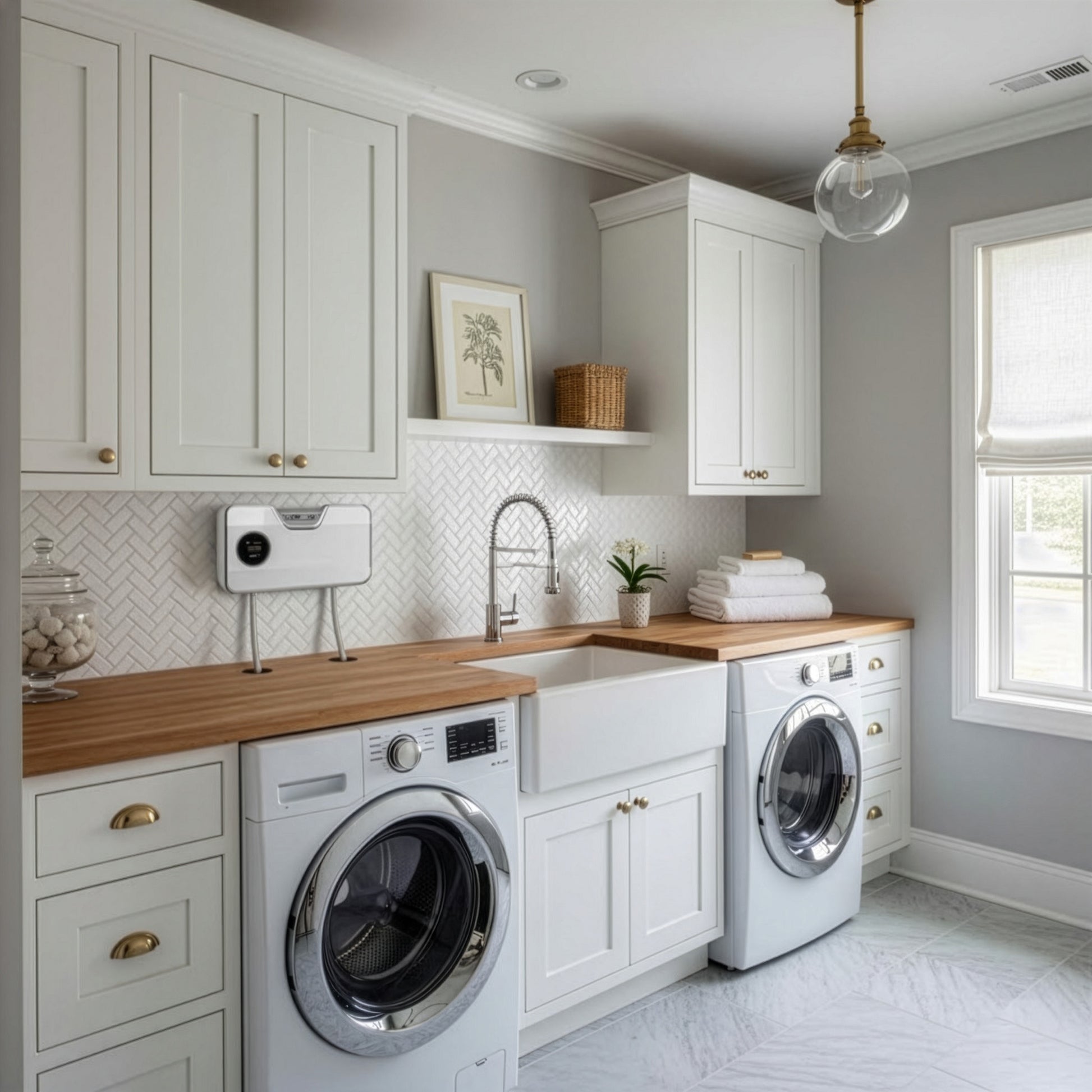

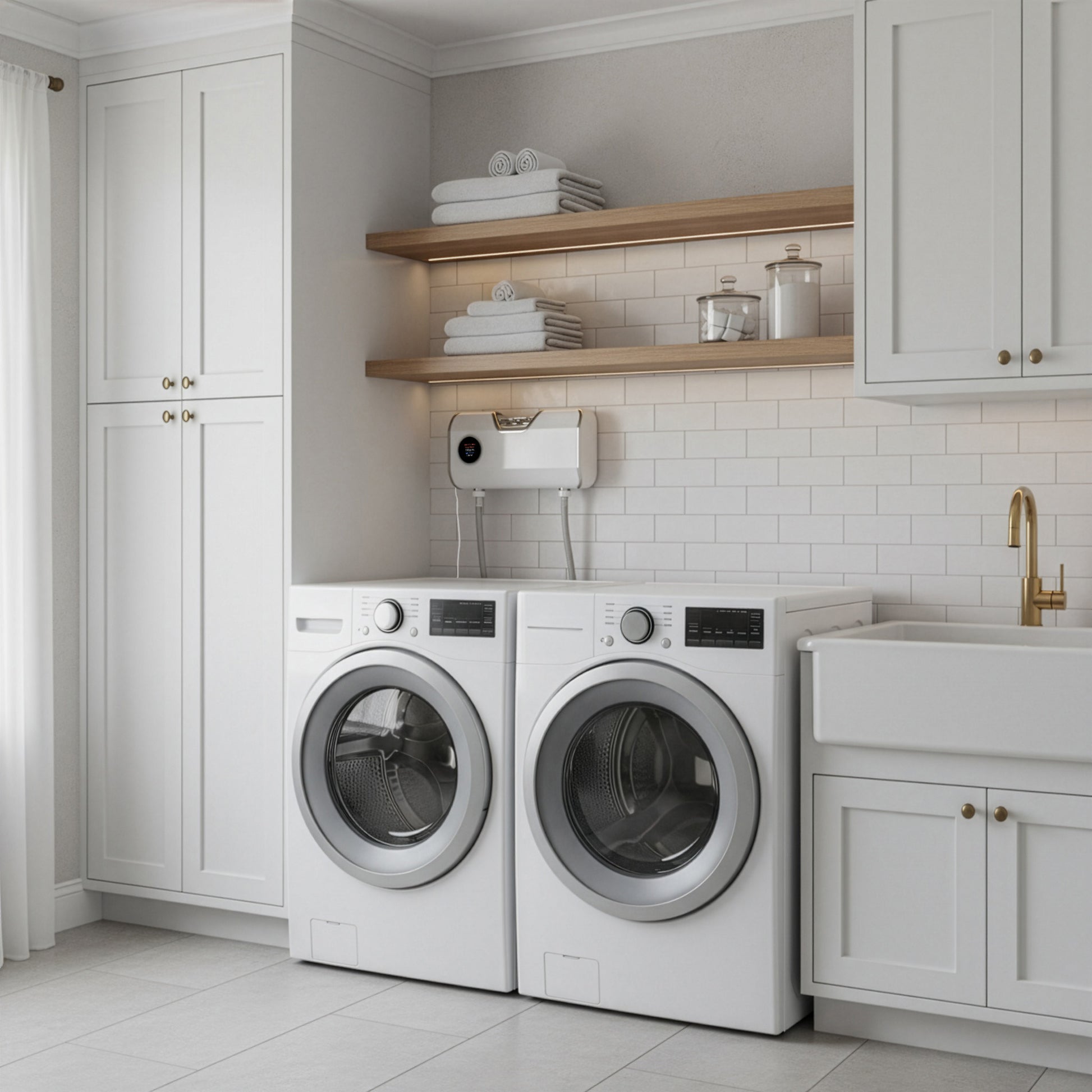

• Wall Mount (included): Horizontal wall mounting only, includes steel wall mounting bracket and metal wall anchors

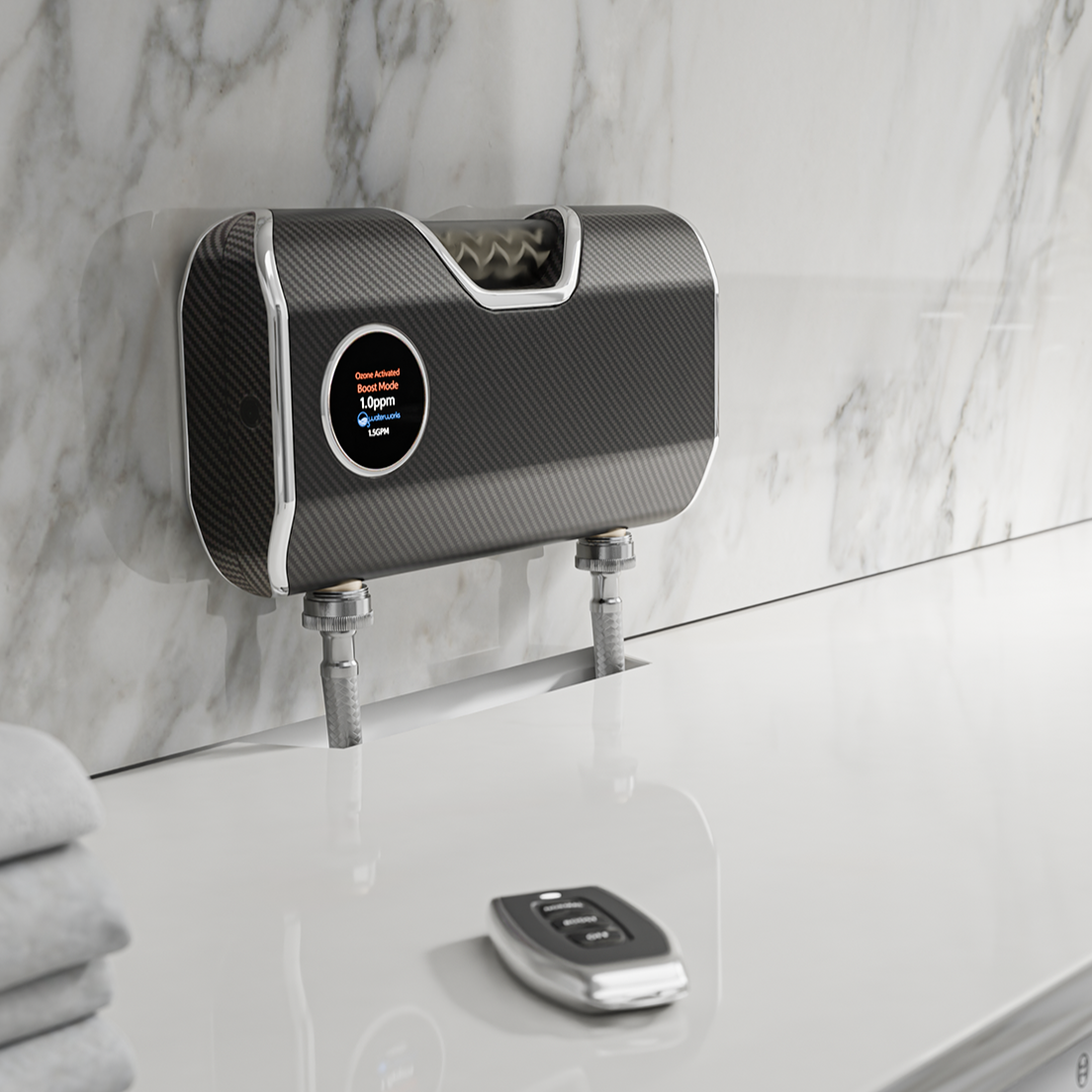

• Remote Control (included): Radio Frequency Remote Included for Concealed Installations
• Splitter (included): Solid Brass splitter with individual Ball Valve controlled lines included. Can be used for accessory hose like filling cleaning buckets or washing pets and

• if needed to increase water flow for some HE washing machines.

• Motherboard:

• Epoxy coated PCB
• Dissolved

• O₃ Concentration: Normal Mode .5ppm or .5mg/l , Boost Mode 1.0ppm or 1mg/l (water quality, ambient humidity and water pressure affects dissolved

• O₃ concentration +/-)

• O₃ Generator:

• Titanium O3 generator
• Smart Tech System: Onboard water flow, humidity and air temp sensors digitally regulate

• O₃ output as needed according to users ambient conditions

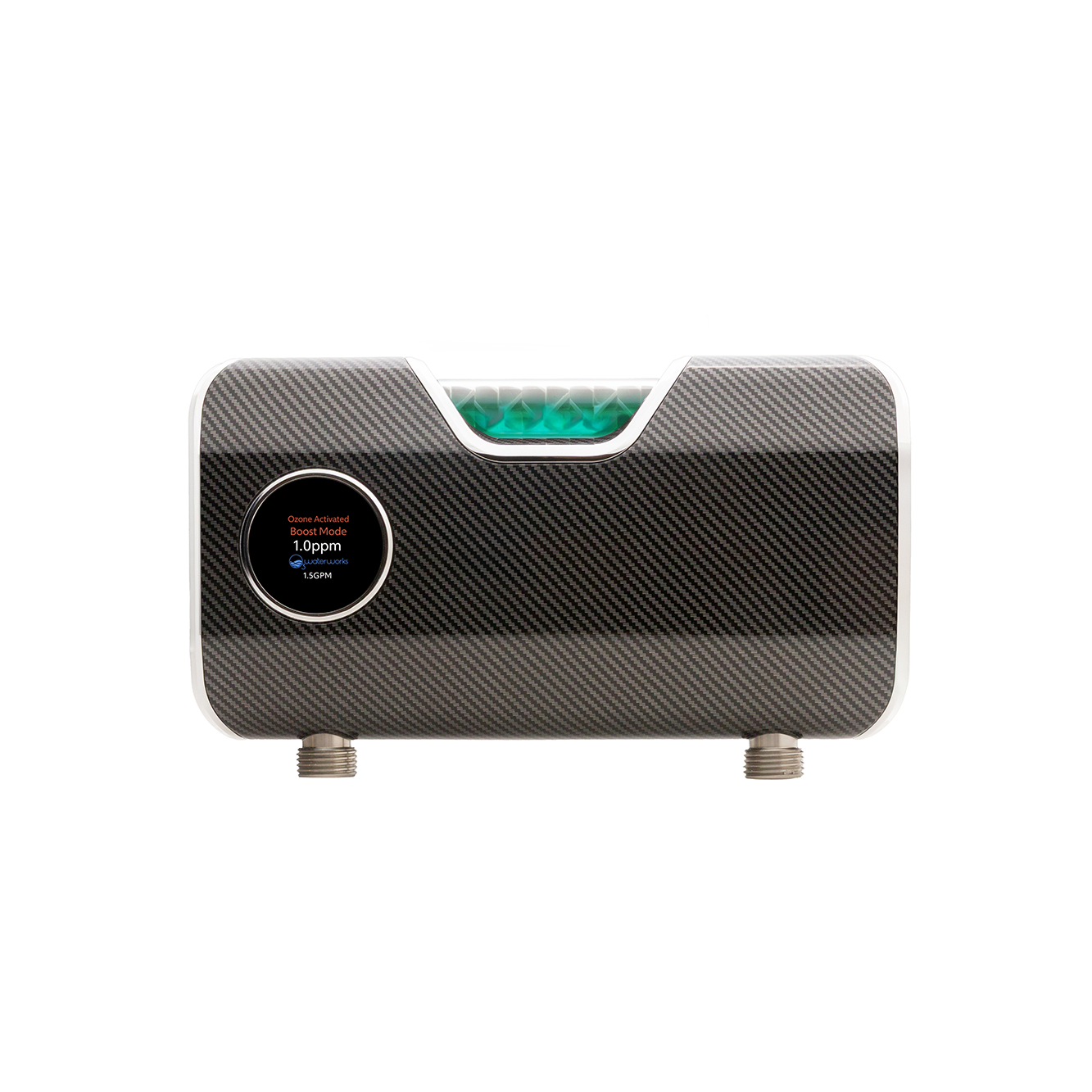

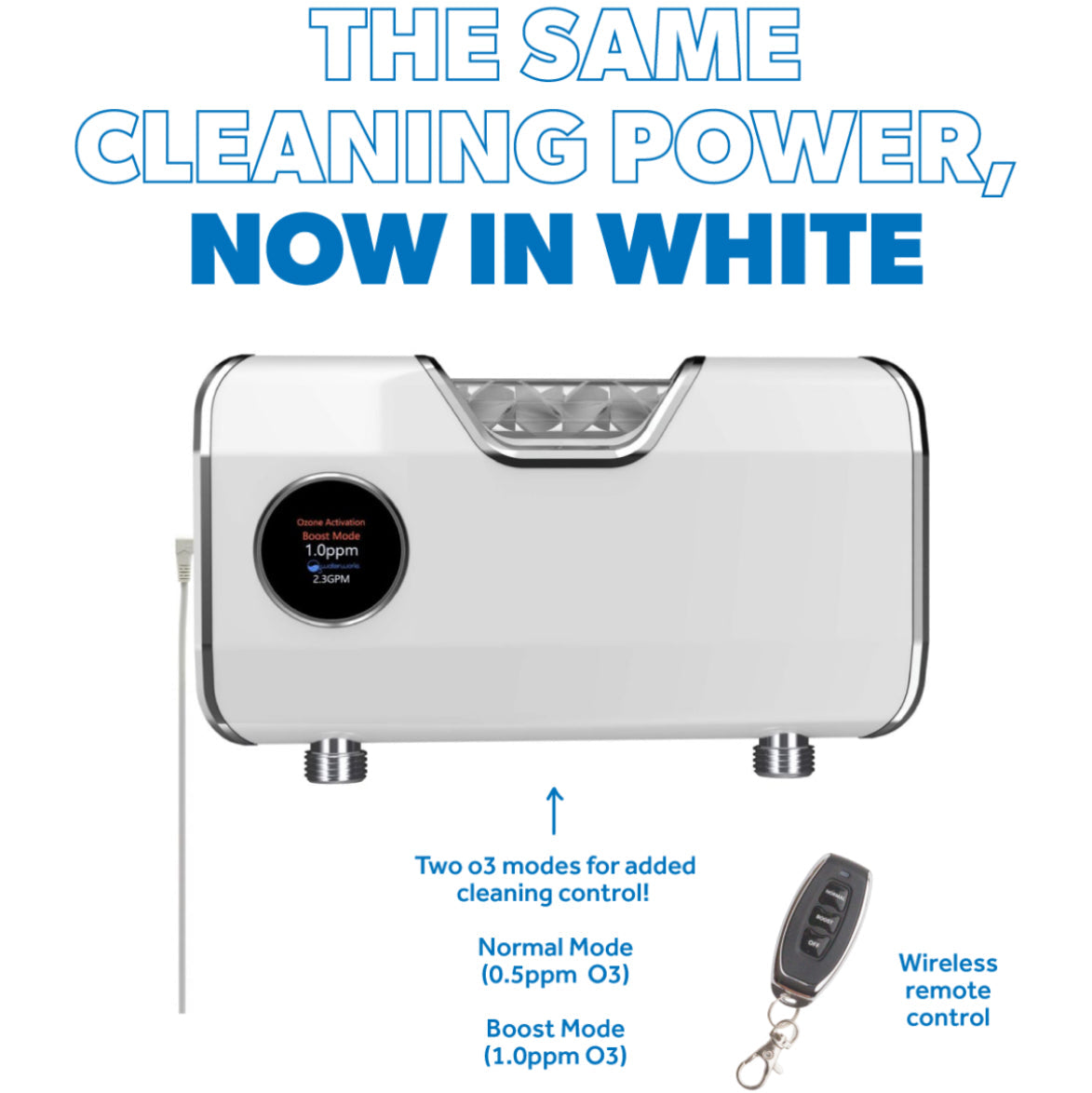

• Feature Modes: Normal Mode, Boost Mode, No

• O₃ Mode, Maintenance Mode
• Maintenance Mode: Built in self regenerating Desiccant Dryer (maintains

• O₃ generator output) No need to purchase any additional packs or filters for life of appliance
• Venturi Injection System: Yes
• Incoming Water Pressure Operating Range: 40 to 80psi or 2.75 to 5.51 bar
• Water Flow Output: @70psi input: 1.75 gallons per minute
• Operating Water Temp: 40°F to 86°F (4°C to 30°C)
• Operating Air Temp: 40°F to 90°F (4°C to 30°C)

• Warranty: 1 Year Parts and Labor
• Manufactured By:

• O₃waterworks, Mooresville, NC
